Bitumen VG 10

Bitumen VG 10 Specification

Bitumen VG 10

80

120

150

**

1.01

1.06

70

**

49

**

99

**

220

**

Neg

50

**

**

500

Tests TItle Standard Range Tests Method
ASTM D3381/INSO12505-2
Min Max ASTM INSO
Viscosity @60 °C, 300 mm Hg, Pa.sᴄ D2171 12851
Kinematic Viscosity @135°Cm D2170 12855
Density @ 60 °F, gr/cm3ᴄ D3289 3872
Penetration @25 °Cm D5 2950
Softening Point, °C, Dist. Waterᴄ D36 3868
Solubility in T.C.E % D2042 2953
Flash point,˚C D92 1175
Spot test , by Naphta AASHTO T102 2949
Test on residue After TFOT
Ductility @ 25˚C, cm D113 3866
Viscosity @60 °C , 300 mm Hg, Pa.s D2171 12851
Bitumen is the most valuable construction material, especially for paving and water-proofing. Of all the types of bitumen available in the market, Bitumen VG 10 happens to be the most in-demand viscosity grade bitumen due to specifications and applications. Throughout this detailed guide, we will be talking about everything you need to know about Bitumen VG 10, its properties, applications, benefits, and why it is a choice for most of the construction work on the planet.

What is Bitumen VG 10?

Bitumen VG 10 is a Viscosity Grade Bitumen and finds very extensive usage in road construction as well as waterproofing. “VG” in its acronym means Viscosity Grade, a viscosity grading of the bitumen at some temperature. VG 10 is particularly lower in viscosity compared to the other viscosity-graded bitumen and finds very good suitability for use at low temperatures and manufacturing of bituminous emulsions.

Key Features of Bitumen VG 10

Numerous main properties of Bitumen VG 10 make it suitable for various uses. Some of the key properties are:
  • Viscosity: VG 10 has the lowest viscosity compared to the other grades and is therefore easier to mix and apply at cold temperatures. It has a normal viscosity of 250-400 cSt at 135°C.
  • Softening Point: It has a medium softening point of approximately 40 to 50°C and is resistant to high-temperature softening.
  • Penetration Value: The grade of bitumen shall be of higher penetration value for ease of workability during cold weather with a range of 80 to 100 at 25°C.
  • Ductility: This bitumen is very ductile with resistance to cracking and flexibility. It has a ductility at 25°C ranging from 100 to 150 cm.
  • Flash Point: VG 10 has a high flash point of 220 to 250°C and is thus safe for application and handling.
  • Trichloroethylene Solubility: It keeps the product stable and pure. Solubility in Bitumen VG 10 ranges from 99.0% to 99.5% under standard conditions.
  • Density: The construction is determined by Bitumen VG 10 performance. It has an average density of 1.01 to 1.06 g/cm³ at 25°C.
  • Elasticity: It is also highly elastic and is free from minute deformations when the temperature change takes place.

Uses of Bitumen VG 10

Bitumen VG 10 has widespread industrial and construction applications because of its desirable properties. It is utilized in the following manners:
  1. Constructing Roads
VG 10 bitumen is widely used for road paving in low-temperature conditions. Because of its low viscosity, it is easy to mix and compact. Some of the typical applications are:
  • Paving the road.
  • Road maintenance and repairs
  • Low-traffic asphalt road
  1. Production of Bitumen Emulsions
Bitumen VG 10 is utilized as a feedstock for bitumen emulsions in soil stabilization and road works. The emulsions enhance environmental resistance and road strength.
  1. Cut Bitumen Production
VG 10 is utilized for the production of cutback bitumen, mixed with solvents to enhance its application. It’s utilized for prime coats, surface dressing, and other quick-curing applications.
  1. Waterproofing & Damp Proofing
Resistance to the water of bitumen VG 10 makes it ideal for waterproofing bridges, basements, and roofs, thus increasing building life.
  1. Industrial Applications
VG 10 bitumen finds industrial applications such as:
  • Coating pipelines to render them corrosion-resistant.
  • Production of roofing felts and membranes.
  • Manufacturing adhesives and sealants

Advantages of Using Bitumen VG 10

The use of Bitumen VG 10 in your project has the following benefits:
  1. Ideal for Cold Climate
VG 10 bitumen is ideal for cold climates due to its low viscosity, making it easy to mix, spread, and compact.
  1. Good Adhesion
VG 10 binds well to aggregates, forming strong, durable road structures that resist weather and traffic.
  1. High Water Resistance
Bitumen VG 10’s resistance to water makes it most appropriate to safeguard structures against damage from water.
  1. Affordable
VG 10 is cheaper than other viscosity-grade bitumen, making it cost-effective for most road construction and industrial applications.
  1. Easy to Work With
Easier to apply and work with due to lower viscosity, saving labor and equipment costs.

Packing of Bitumen VG 10

Bitumen VG 10 is packaged differently according to project requirements. The following are typical packaging arrangements:

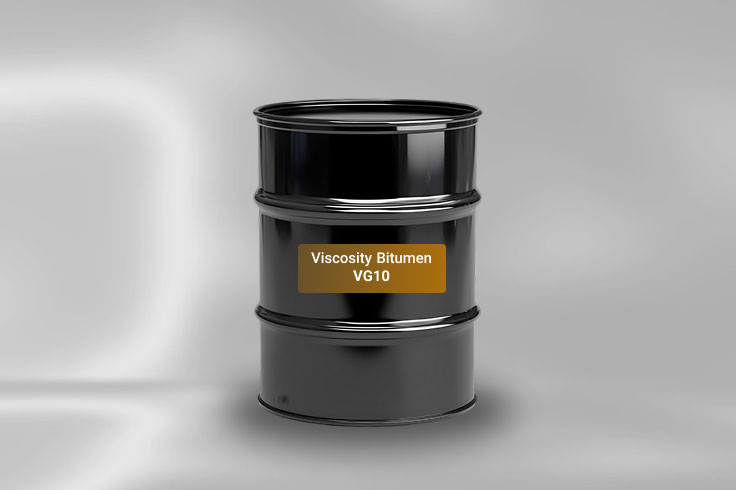

  • Drums (Standard steel drums for easy storage and transportation)
  • Bulk (Shipped in heated tankers for bulk use)
  • Bags (Polymer bags for easy handling and less waste)
  • IBC Totes (Intermediate bulk containers for specialty applications)

Bitumen VG 10 Price

Bitumen VG 10 varies in price based on a variety of factors such as the price of crude oil, demand, location, and transport. It may range from $300 to $500 per ton but may vary based on these factors. As prices of bitumen are updated again and again, an individual is compelled to call local dealers or experts to receive updated and recent prices.

Buy Bitumen VG 10

Bitumen VG 10 is contractors’ and engineers’ first option anywhere in the globe because of its superior adhesion, water resistance, and ease of use. Understanding the properties and benefits of Bitumen VG 10 enables you to make the optimal choice for your construction project. If you are constructing a road in a cold climate, producing bitumen emulsions, or just seeking a reliable waterproofer, VG 10 is an inexpensive and effective product that serves well.
